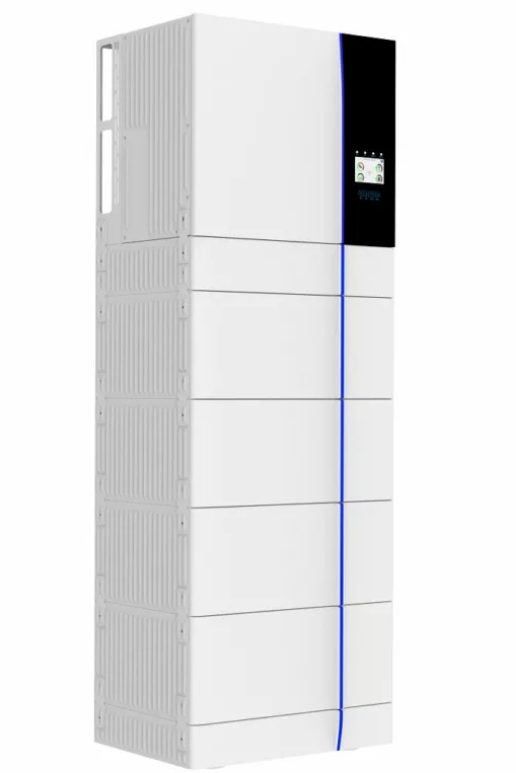

Deye GB-SL (EU, AU) Green Energy Storage | Residential ESS Solution
- Scalable Power Range: 5kW to 25kW capacity options for complete residential ESS solutions
- All-in-One Design: Integrated green energy storage system with sleek aesthetics for seamless home integration
- Maximum Performance: 100% unbalanced output per phase with up to 60% rated power capability
- Expandable Configuration: Support for up to 10 parallel units for growing energy needs
- Advanced Battery Technology: High-voltage lithium iron phosphate battery pack for solar panels
- Dual Grid Compatibility: Works with both on-grid and off-grid solar PV battery installations
- Smart Thermal Management: Intelligent temperature monitoring with natural cooling system
- Cable-Free Connections: Modular design improves efficiency and reliability of battery energy storage solutions
Description
| Specification | Details |
|---|---|
| Cell Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Module Energy | 4.09 kWh per module |
| Module Voltage | 102.4V nominal |
| Module Capacity | 40Ah |
| System Configurations | 2-6 modules (8.18-24.54 kWh total capacity) |
| Operating Voltage Range | 204.8V – 614.4V |
| Charge/Discharge Current | 20A recommended, 40A maximum, 50A peak |
| Operating Temperature | Charging: 0°C to 55°C Discharging: -20°C to 60°C |
| Cycle Life | >6,000 cycles at 70% EOL (25°C, 0.5C/0.5C) |
| Warranty | 10 years comprehensive coverage |
| IP Rating | IP65 (dust-tight and water-resistant) |
| Humidity Range | 5-85% RH |
| Maximum Altitude | 2,000 meters |
| Noise Level | <55dB (whisper-quiet operation) |
| Storage Temperature | 0°C to 35°C |
| Communication Protocols | CAN2.0/RS485 |
| Thermal Management | Natural cooling system |
| Installation Type | Floor mount design |
| Recommended Discharge Depth | 90% |
