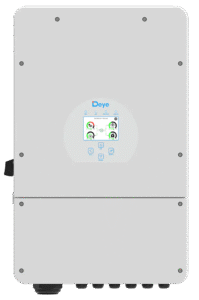

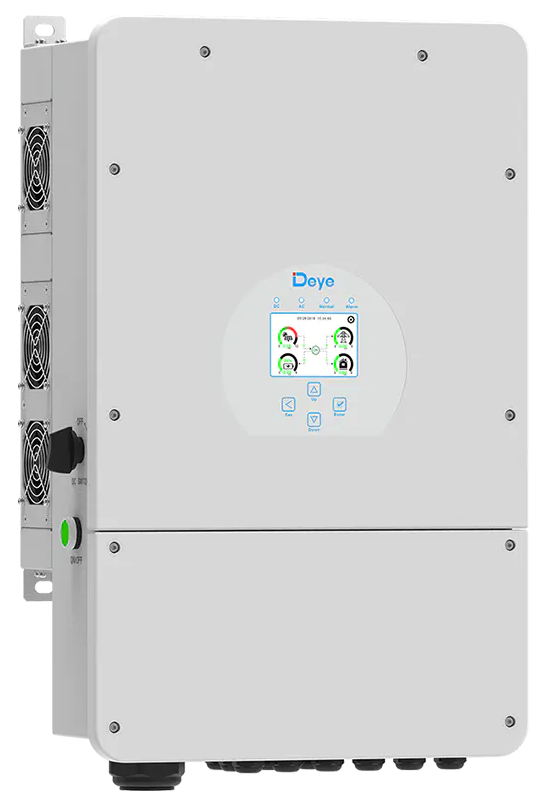

SUN-5/6/7.6/8/10/12K-SG02LP2-US-AM2/AM3
Single Phase Hybrid Inverter | 5-12kW | 2 MPPT | LV Battery Supported
- Colorful touch LCD, IP65 protection degree
- AC couple to retrofifit existing solar system
- Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
- Max. charging/discharging current of 250A
- Support storing energy from diesel generator
- 6 time periods for battery charging/discharging
Technical Specifications
| Model | SUN-5K-SG02LP2-US-AM2 | SUN-6K-SG02LP2-EU-AM2 | SUN-7.6K-SG02LP2-EU-AM2 |
SUN-8K-SG02LP2-EU-AM2 | SUN-10K-SG02LP2-EU-AM3 | SUN-12K-SG02LP2-EU-AM3 |
| Battery Input Data | ||||||
| Battery Type | Lead-acid or Lithium-ion | |||||
| Battery Voltage Range(V) | 40-60 | |||||
| Max.Charging Current(A) | 120 | 135 | 190 | 190 | 220 | 250 |
| Max.Discharging Current(A) | 120 | 135 | 190 | 190 | 220 | 250 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | |||||
| Number of battery input | 1 | |||||
| PV String Input Data | ||||||
| Max DC Input Power（W） | 7500 | 9000 | 11400 | 12000 | 15000 | 18000 |
| Max DC Input Voltage（V） | 500 | |||||
| Start-up Voltage（V） | 125 | |||||
| MPPT Voltage Range（V） | 150-425 | |||||
| Rated DC Input Voltage(V) | 370 | |||||
| Max. Operating PV Input Current (A) | 20+20 |
26+26 | 26+26+26 | |||
| Max. Input Short-Circuit Current (A) | 44+44 |
44+44+44 | ||||
| No.of MPP Trackers/No.of String Per MPP Tracker | 2/2+2 |
3/2+2+2 | ||||
| AC Input/Output Data | ||||||
| Rated AC Input/Output Active Power（W） | 5000 | 6000 | 7600 | 8000 | 10000 | 12000 |
| Max AC Input/Output Apparent Power （VA） | 5000 | 6000 | 7600 | 8000 | 10000 | 12000 |
| Peak Power (off-grid)（W） | 2 times of rated power, 10s | |||||
| Rated AC Input/Output Current（A） | 20.9 | 25 | 31.7 | 33.4 | 41.7 | 50 |
| Max AC Input/Output Current（A） | 20.9 | 25 | 31.7 |
33.4 | 41.7 | 50 |
| Max. Continuous AC Passthrough (grid to load) (A) | 35 | 40 | 50 | 60 | ||
| Rated Input/Output Voltage/Range(V) | 120/240; 208 0.88Un＜U＜1.1Un | |||||
| Grid Connection Form | 2L+N+PE | |||||
| Rated Input/Output Grid Frequency/Range | 60/55-65 | |||||
| Power Factor Adjustment Range | 0.8 leading to 0.8lagging | |||||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | |||||
| DC Injection Current | <0.5%ln | |||||
| Efficiency | ||||||
| Max Efficiency | 97.6% | |||||
| Euro Efficiency | 96.5% | |||||
| MPPT Efficiency | ＞99% | |||||
| Equipment Protection | ||||||
|
Integrated
|
DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage
Protection, AC Output Short Circuit
Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection,
DC Switch, Insulation Impedance Detection,
Residual Current Detection
|
|||||
| Surge Protection Level | TYPE II(DC), TYPE II(AC) | |||||
| Interface | ||||||
| Communication Interface | RS485/RS232/CAN | |||||
|
Monitor Mode
|
GPRS/WIFI/Bluetooth/4G/LAN(optional) | |||||
| General Data | ||||||
| Operating Temperature Range | -40 to +60℃, >45℃ Derating | |||||
| Permissible Ambient Humidity | 0-100% | |||||
| Permissible Altitude | 2000m | |||||
| Noise | ≤ 45 | |||||
| Ingress Protection(IP) Rating | TYPE 3R | |||||
| Inverter Topology | Non-Isolated | |||||
| Over Voltage Category | OVC II(DC),OVC III(AC) | |||||
| Cabinet size（W*H*D）[mm] | 420×670×233（Excluding connectors and brackets） |
|||||
| Weight[kg] | 35.6 | |||||
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy |
|||||
| Type Of Cooling | Intelligent air cooling | |||||
| Grid Regulation | IEEE 1547.1, SRD V2.0 | |||||
| Safety EMC/Standard | FCC, UL 1741 | |||||
